Features |
– Balanced Seal Type
– Enables High speed rotation at High pressure – Low friction |
– Stainless steel shaft and springs |
– Silicon-Carbide Sealing for KRS model
– Extended running hours than KR Model – Protection against media contamination by rust, scale, chips & other harmful abrasives |

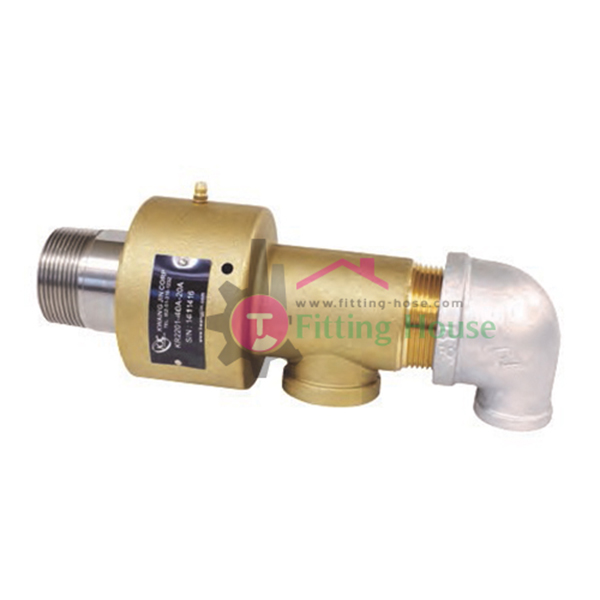

Rotary Joints 2200 series
Size Range | 6A~80A (1/8”~3”) |
Max. Pressure | 10kg/cm2 (150PSI) |
Max. Rotation Speed | 6A~25A (1/8”~1”) : 1000RPM |
32A~40A (1.1/4”~1.1/2”) : 700RPM | |
50A~80A (2”~3”) : 500RPM | |
Max. Temperature | 100°C (210°F) |
Media | Water, Air, Gas, Oil |
*Avoid max. Pressure at max. rpm operation |
