| Size Range | 15A~80A (1/2”~3”) |
| Max. Pressure | 15kg/cm2 (210PSI) |
| Max. Rotation Speed | 15A~25A (1/2”~1”) : 300RPM |
| 32A~80A (1.1/4”~3”) : 150RPM | |
| Max. Temperature | 220°C (420°F) |
| Media | Steam, Hot Oil |
| * Avoid max. Pressure at max. rpm operation | |

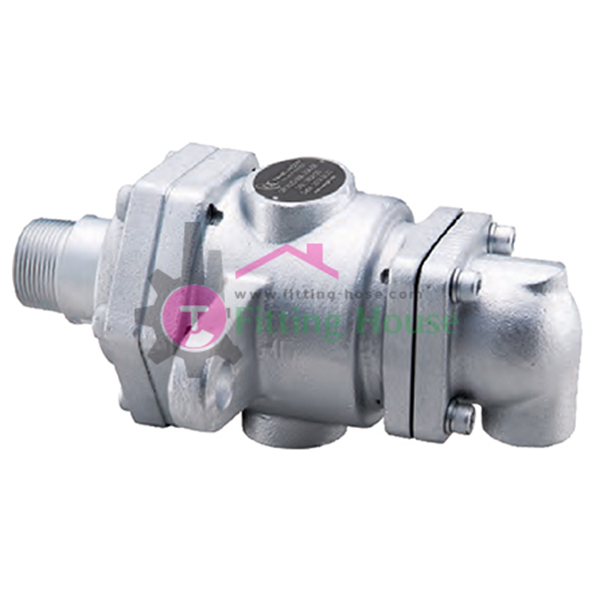

3700 Series Rotary Joints
| Features |
| – Two Widely-Spaced Carbon Bearing |
| – Spherical Sealing |
| – Self-supported & Alignment rotating union |
| – Easily field repairable |
| – Non-Lubrication type |
| – High Temp. Steam & Hot Oil media |
